ew Engines hand built to order, choice of specifications

Engines Built to

Regulations

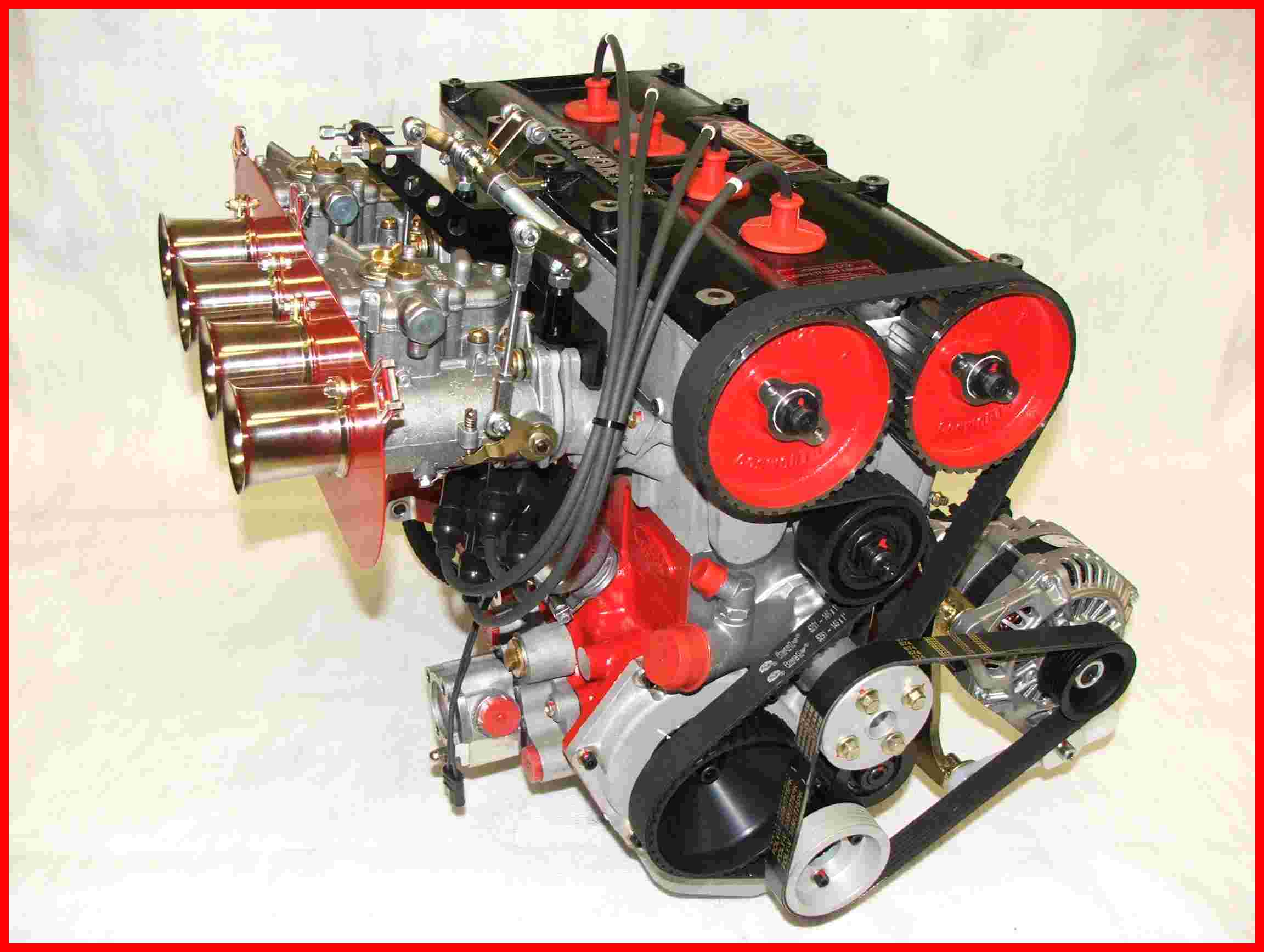

BDG on Carburettors

Lucas Mechanical Injection

Kugelfischer Mechanical Injection

Engines are fully assembled, fitted to the dynamometer, run in, set up and power tested.

£22661.48 +VAT

Available extras: Starter Motor, Alternator and Exhaust manifold

Alloy block, Steel N/J lightweight crank, I section Steel con rods, forged pistons, Steel flywheel, twin paddle clutch, dry sump pump and pan, big valve head, latest spec cam carrier, full mechanical injection system including throttle slide, trumpets, injectors, air filter, metering unit, complete drive system, high pressure fuel pump, fuel filter and pressure regulator. Electronic ignition kit and plug leads.

Engines are fully assembled, fitted to the dynamometer, run in, set up and power tested.

£29565.00 +VAT

Available extras: Starter Motor, Alternator and Exhaust manifold

Alloy block, Steel N/J lightweight crank, I section Steel con rods, forged pistons, Steel flywheel, twin paddle clutch, dry sump pump and pan, big valve head, latest spec cam carrier, Kugelfisher mechanical injection system including 48mm down draught butterflies, trumpets, injectors, air filter, fuel injection pump, complete drive system, high pressure fuel pump, fuel filter and pressure regulator. Electronic ignition kit and plug leads.

Engines are fully assembled, fitted to the dynamometer, run in, set up and power tested

Available extras: Starter Motor, Alternator and Exhaust manifold

More Information

BDG on Electronic Fuel Injection

Alloy block, steel N/J lightweight crank, H section steel con rods, forged pistons, steel flywheel, twin paddle clutch, dry sump pump and pan, big valve head, latest spec cam carrier, side-draft throttle bodies, Ecu, injectors, all sensors, wiring harness, fuel filter, fuel pump, air filter, and plug lead set.

Fully assembled, programmed and dyno tested

BDD 1600 Formula Atlantic, BDB, BDC, BDM and BDE

All of these engine derivatives are built on a Cast iron block with Steel N/J Lightweight crank, I section Steel con rods, forged pistons, Steel flywheel, twin plate clutch, dry sump pump and pan, race spec head, Latest spec cam carrier, 48 Weber carburettors or Lucas mechanical injection, air filter, electronic ignition kit and plug lead set.

Fully assembled and dyno tested

Available extras: Starter Motor, Alternator and Exhaust manifold

More Information


BDH 1300 cc


1300 BDH engines and special components available

*Cast Cylinder Block*	*Aluminium Cylinder Blocks*

711M 1600 strengthened Cast Cylinder Blocks, Standard bore suitable for BDA, BDB, BDC, BDD, BDM and BDR	New Alloy cylinder blocks fully machined, linered and bored to 90mm, 90.335mm and 90.424mm

New Aluminium Cylinder Blocks with Abdicote 2000 Coated Cylinder Bores

These cylinder blocks are fully machined with no liners fitted, leaving more aluminium in the bores and are coated with Abdicote 2000 (Nikasil) giving less friction. This coating has a much better wear rate than cylinder liners and are hone finished to 90mm or 90.335mm


*Plug Lead Sets*	*Rotor Arms*

Plug lead sets custom made in Black or Red	Have you had rotor arm reliability issues? Our Special rotor arms have been manufactured in Italy to overcome the problems which are now proven and tested.


*Lumenition Ignition System*	*Lucas Ignition System*

Lumeniton Optronic Performance ignition kit	Lucas Constant Energy Electronic ignition kits


*Competition Rev Limiter*	*Competition Ignition System*

Adjustable rev limiter, can be adjusted to suit engine	An alternative to the Lucas Constant Energy kit is the Lumenition system complete with new base plate, rotor and pickup, this converts the original Lucas 43/45 DM distributors.

Camshafts

After more than 30 years of building and testing the BD series engines we have learned a great deal about camshafts whether the application is for race, rally, sprint or hill climb. We stock a range of camshafts with various profiles including some specially developed by ourselves

Valve Train

As the Cosworth German schmithelm spring is no longer available, we have had to re-manufacture the spring in Germany to the same specification and carry a large stock

Steel valve retainers, platforms and cotters to suit German race double springs

Steel valve retainers, double springs, platforms and cotters. A conversion kit for standard BDA using higher lift camshafts

Standard Steel RS1600/RS1800 Valve retainers to suit standard flat shims

*Cam carriers* New cam carriers available for BDA to BDG spec, cam shafts, cam buckets and all valve train
		*Crankshafts* New design EN40B steel crankshafts with, lightened counterbalance webs and bored out big end journals. Various strokes available
*Con rods* Forged steel con rods, H and I section		*Bearings* We carry a large stock of heavy duty race, mains, big ends and narrow journal bearings
Pistons: Available for RS1600, BDR, 81mm, 83.5mm, 84mm,		85mm, 86mm, 87mm, 90mm, 90.335mm, 90.4mm, 91mm

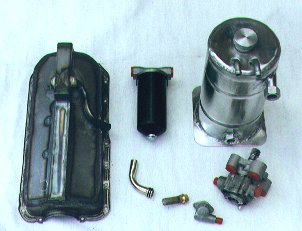

*Dry and Wet sump Oil system parts* Works Escort type 2 gallon dry sump tanks, fully baffled. Smaller tanks suitable for kit cars and single seater installation. Dry sump pumps, H/P H/C oil pumps, oil cooler sandwich blocks and remote oil filters
		Dry sump installation kit for Mk 1 Mk 2 Escorts
*Sump pans* Alloy dry Sump pans available, half trough for Escort installation or full trough for single seaters etc
		*Stud and Bolt kits* Head bolt sets 7/16 UNC Head stud set 7/16 UNC to 7/16 UNF Head stud set 12mm to 7/16 UNF

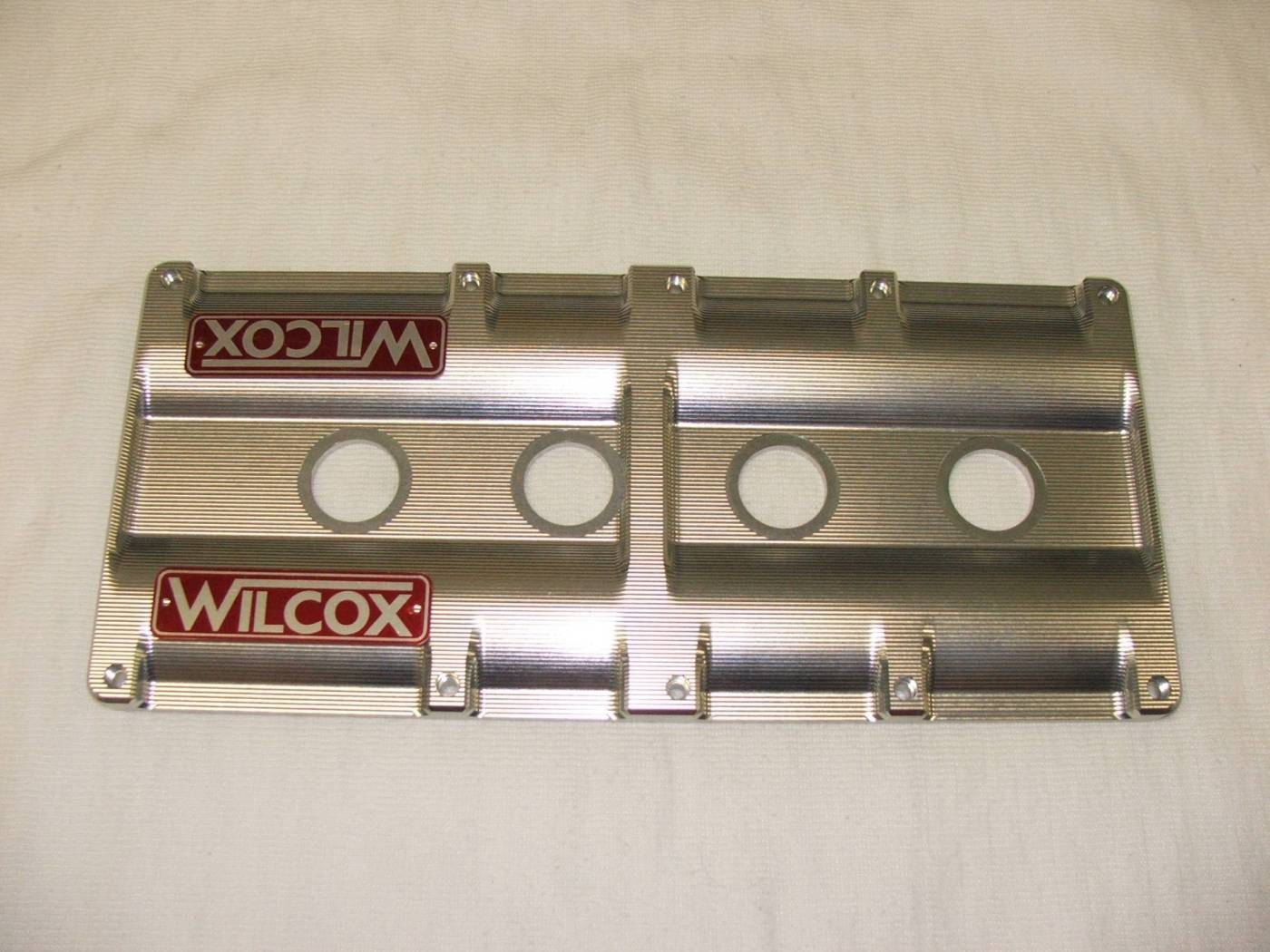

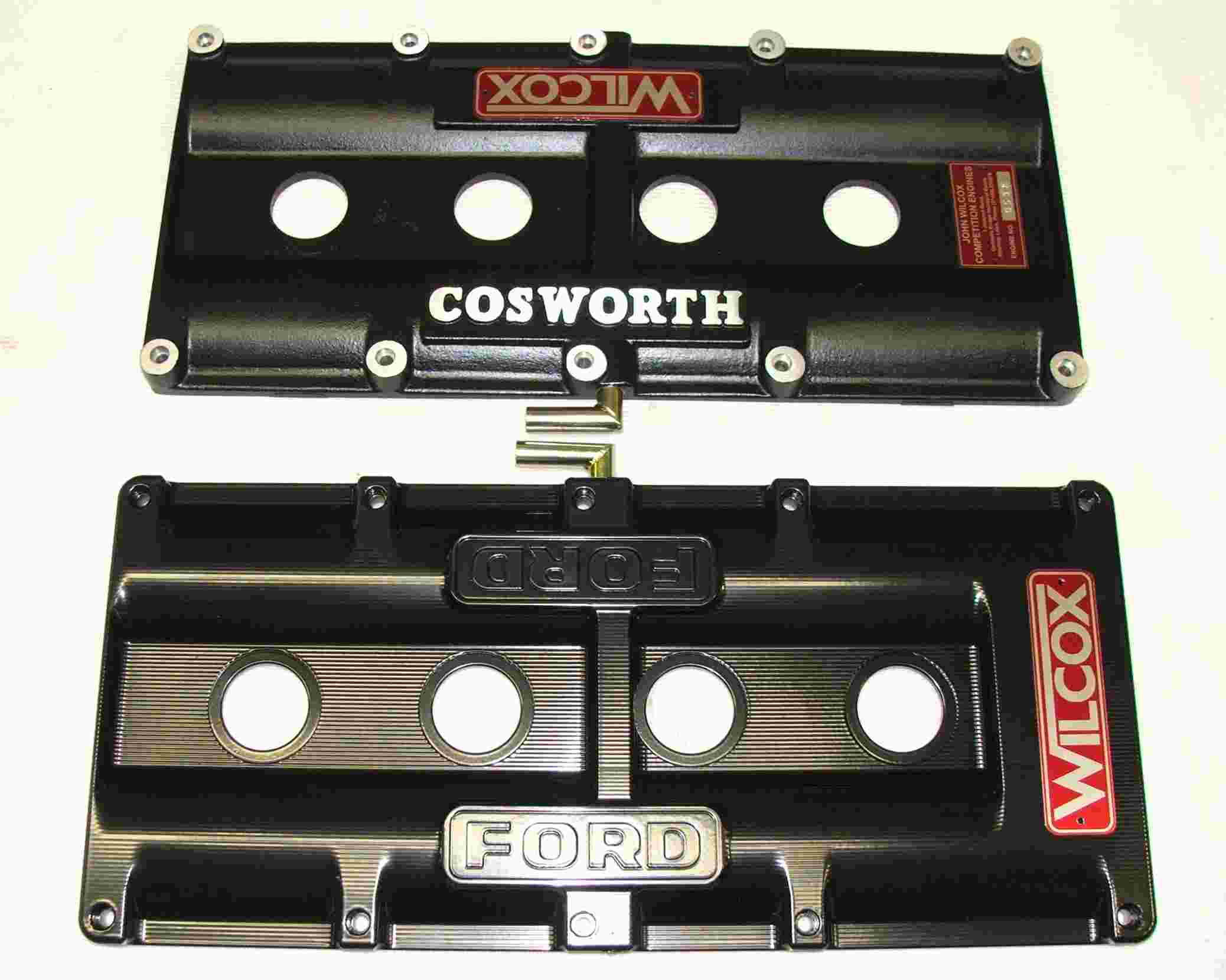

Cam Covers

Re- Manufactured Ford original cast cam lid

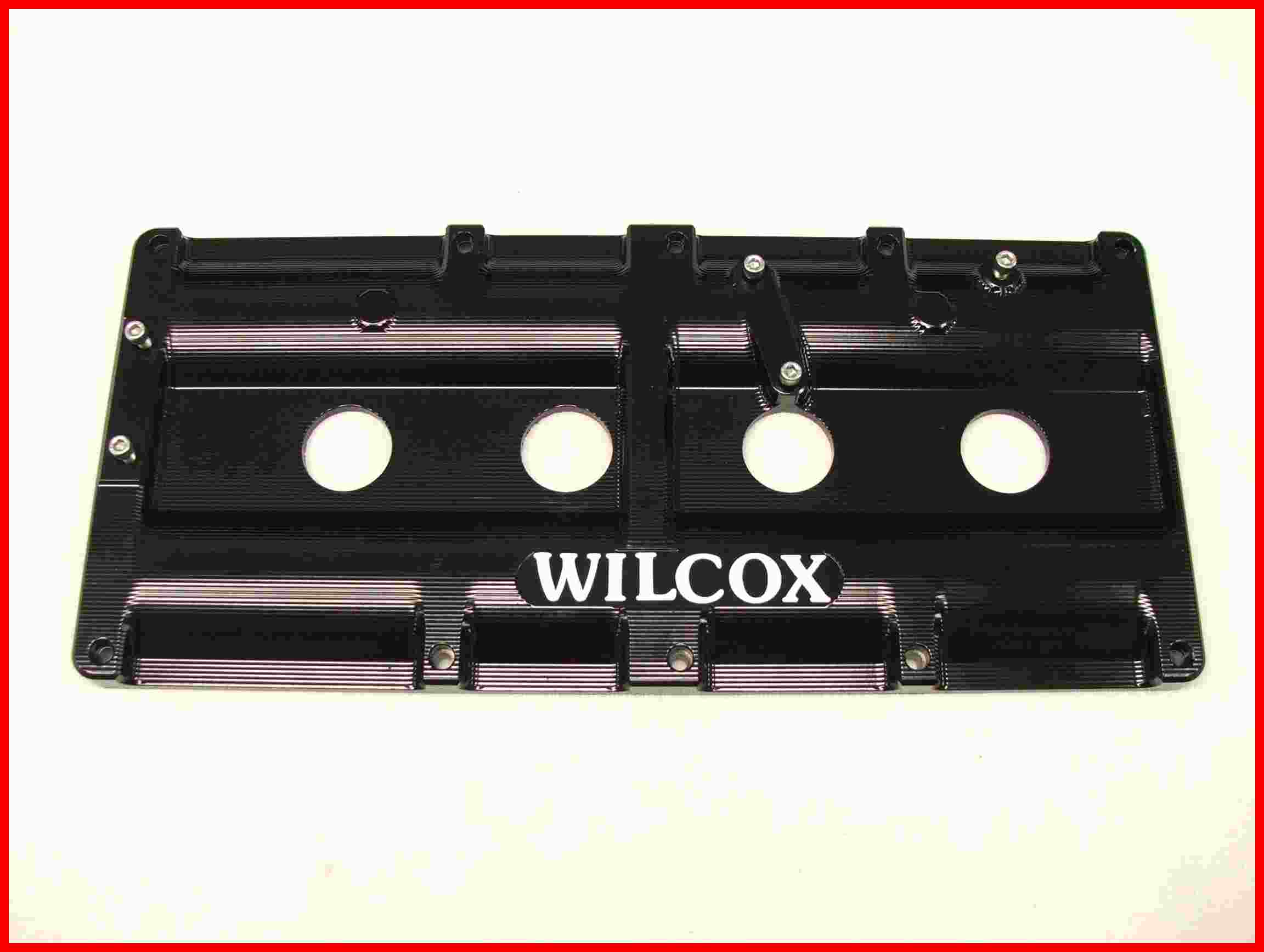

Re- Manufactured Ford Original cast Lucas Mechanical Injection cam lid

Cosworth original cast cam lid ( limited stock )

Steel Flywheels

A range of steel flywheels to suit most clutches.

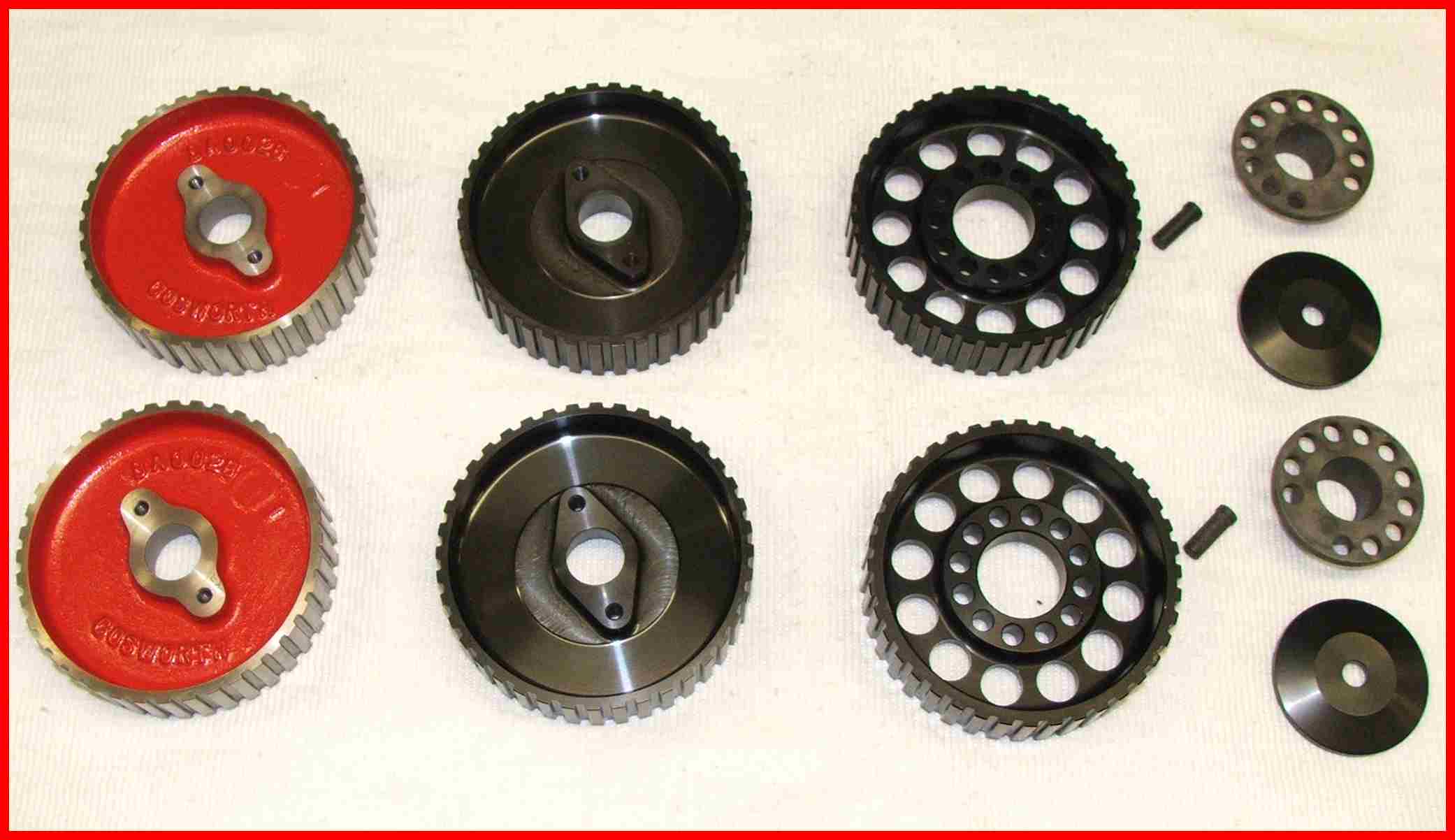

Camshaft Pulleys

Original Cosworth cast and CNC machined adjustable pulleys.

Lucas Mechanical Fuel Injection kits

	New mechanical fuel injection kit, rear driven , side mounted metering unit to suit Formula 2 and sports car installation.
	New mechanical fuel injection kit, front driven , top mounted metering unit to suit Escort installation.


*Aluminium Trumpets and Air Filters kits*	*Fuel Pressure Relief Valves*

Spun aluminium or CNC machined trumpets and air filter kits available for throttle slides

Original Lucas type fuel pressure relief valves

Carburettors and accessories

Foam Air Filters


Stockists of Weber carburettors, wide range of trumpets, linkage joints, jets and accessories.	We stock a large range of foam filters and filter oils	One off filters can be tailor made to suit your needs phone for details.

*Fuel Pumps and Regulators*	*Weber 48 DCO2sp Trumpets*

Fast road / competition, injection and carburettor fuel pumps, pressure regulators and accessories	Weber 48 DCO2sp short 30mm long replacement, fully flared aluminium trumpets.

Throttle Linkages


Universal twin cable Weber throttle linkage.	Fully rose jointed works type throttle linkage with two spindle return springs.	Fully rose jointed works type throttle linkage.

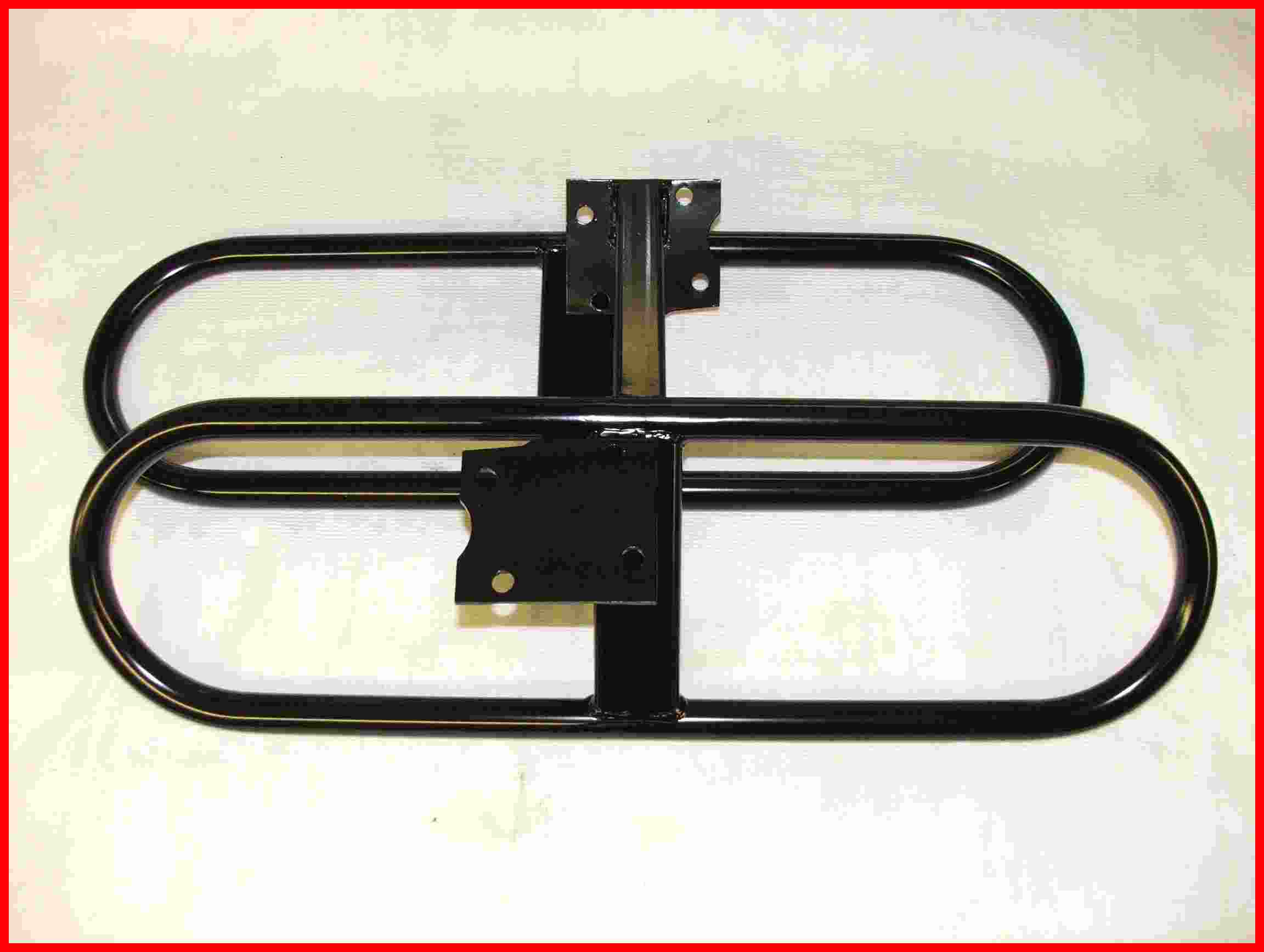

Engine Stands

Steel tubular engine stands, ideal for transportation

Engine Mounts World Cup engine mounts

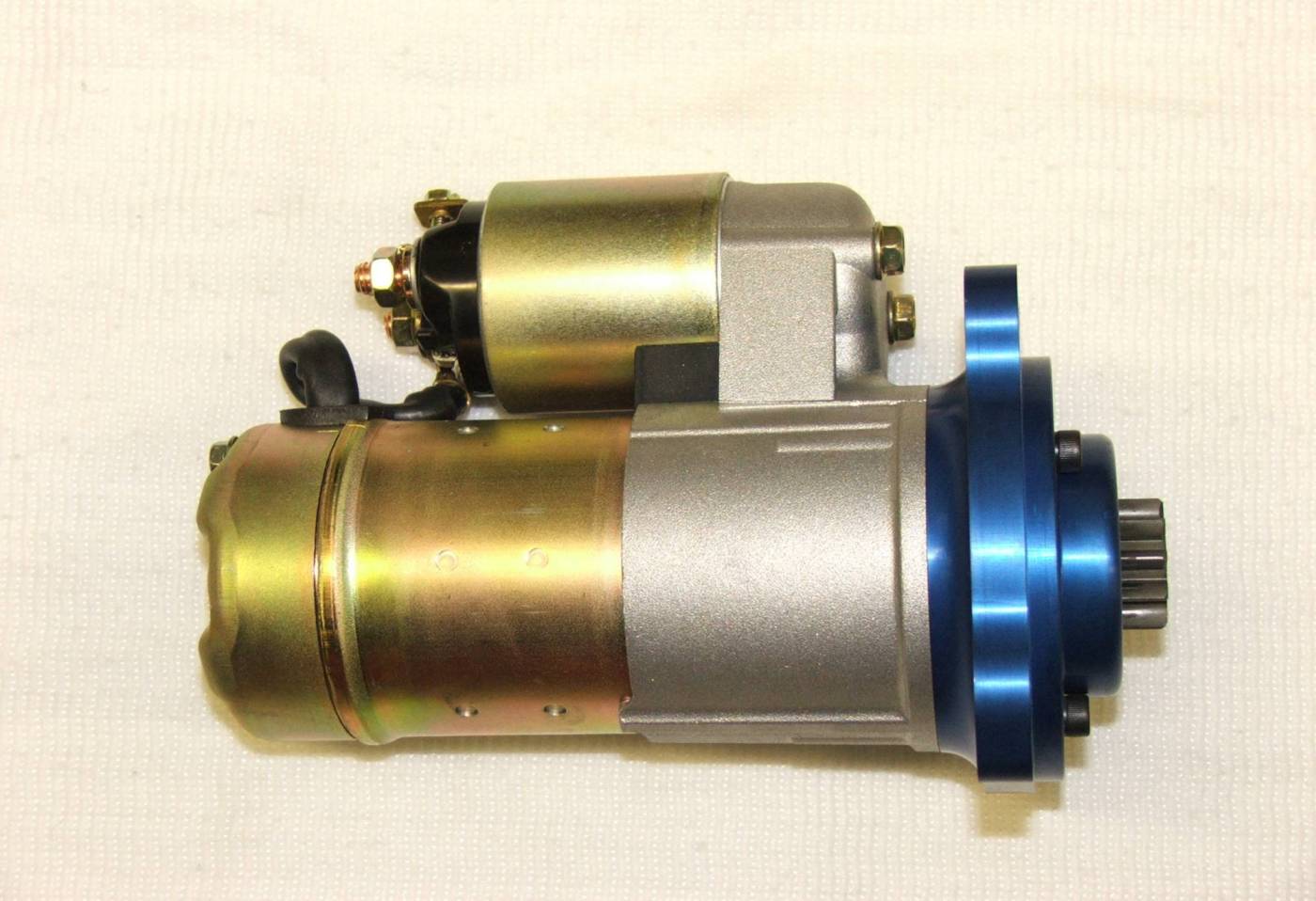

	*Starter Motor* Competition Heavy Duty Pre Engaged Starter Motor

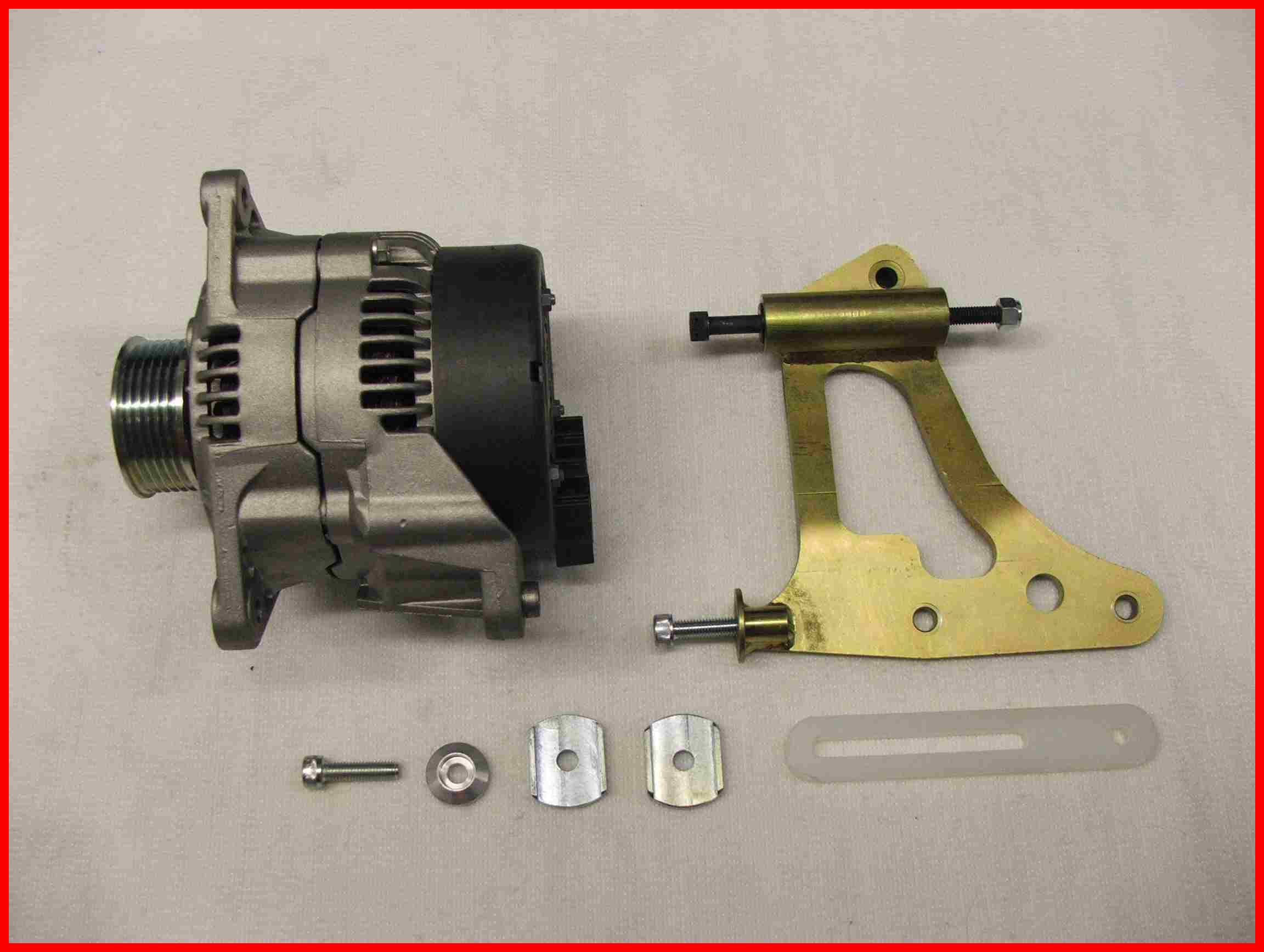

Alternator and Bracket 3 Bolt fixing alternator bracket and high powered alternators

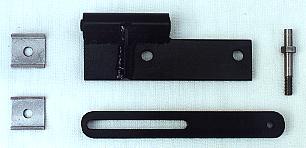

	*Alternator and bracket* Twin bolt Works Type alternator bracket kit. High powered alternator to suit.


	*Thermostats and housings*

Thermostats available in 75, 82 and 88 degrees	Thermostat housing with pressure cap to suit kit cars & single seaters when the radiator is lower than the engine	Remanufactured original thermostat housings with sensor boss.

Water Pumps

Water pumps to suit BDA, BDG and BDT

Gaskets and seals

All competition gaskets and seals available, including a large selection of conventional and multi layered head gaskets from 81mm to 90mm.

Stainless Steel Exhaust port blanks 3 & 4 bolt

Exhaust manifolds

Works type race and rally exhaust manifolds, 4 into 2 into 1 or 4 into 1 configuration.

Part	Price
FORD BD series engine
Alloy Linered cylinder block 90mm, 90.335, 90.424mm bore	£3345.00
Alloy cylinder block with Abdicote 2000 coated bores 90mm or 90.335mm	£4600.00
Cast 711M cylinder blocks standard bore	£1410.00
7/16 unc / 12mm Head Studs, nuts and washer kit - Suit alloy block	£198.00
7/16 unc Head studs, nuts and washer kit - Suit alloy block ARP	£135.00
Head bolts 7/16 unc or 12mm cap head	£ 140.00
Forged Pistons 91mm, 90.4mm, 90.335mm, 90mm, 87mm, 86mm, 85mm, 84mm, 83.5mm, 81mm	£720.00
Forged Pistons RS 1800 87mm, BDR 83.5 mm, 84mm (set)	£720.00
BDG Cylinder Head, Unleaded seats and guides	£3345.00
Steel Crankshaft EN40B 63mm, 72.75mm, 77.6mm, 80.8mm, 84mm	£1500.00
Scat Heavy Duty Crankshaft	£695.00
Steel Conrods 4.800", 4.826", 4.926", 5.230", (Specials to order)	£ 600.00
Steel Conrods H or I section	£ 700.00
Steel Flywheels 6 or 12 bolt 81/2" clutch or 71/4" clutch From	£ 250.00
Steel Jackshaft, single or twin bolt	£ 125.00
Dry sump pans (half trough)	£ 365.00
Dry sump pan (full trough)	£ 365.00
Dry sump pan (Atlantic)	£ 365.00
Dry sump pump 4 or 5 port - None Tacho	£ 369.00
Dry sump pump 4 or 5 port Tacho Facility	£ 369.00
Wet sump High pressure oil pump	£ 94.00
Dry Sump oil Tank - Works Type - 2 Gallon with Union or Push on Fittings	POA
Water pump cast block	£98.00
Water pump alloy block	£ 128.00
Water pump B.D.T	£275.00
Plug lead set	£ 88.00
Lucas competition distributor with points	POA
Lucas constant energy ignition kit with distributor and coil	£ 385.00
Lumenition Competition Electronic Ignition Kit	£234.00
Lumenition Fitting Kit to convert Constant Energy distributor	£20.00
Lumenition Fitting Kit to convert points distributor 43D4	£22.75
Lumenition Rev Limiter	£81.50
Jackshaft pulley, single or twin bolt	£ 91.92
Crank tooth pulley	£ 80.14
Crank tooth pulley, Pushrod to B.D.A	£ 102.00
Fixed Idler pulley/ Bearings/ Hub/ Spacer	£ 79.35
Adjusting Idler pulley/ Bearings/ Hub/ Collar	£ 79.35
Adjusting Idler pulley oversized	£54.60
Cam pulleys Cosworth cast type per pair	£ 190.36
Cam pulleys alloy Adjustable	£240.00
Water pump back-drive pulley	£ 52.50
Poly V crank pulley	£ 29.99
Poly V water pump pulley	£ 29.99
Poly V alternator pulley	£ 36.82
Poly V belt	£ 18.34
Cam belt 1600/2000	£ 30.63
Cam belt 1300	£ 36.57
Front cover	£ 185.23
Rear cover	£58.00
Cam cover	£250.00
Camshafts re profiled (per pair)	£ 270.00
Camshafts profiled from blanks (per pair)	£ 526.00
Alternator bracket ( rubber mounted )	£85.00
Alternator stud	£ 12.50
Alternator nylon arm	£ 21.50
Big end bolts competition for std con rods (Set)	£ 92.00
Big end bolts "V" type (each)	£ POA
Big end bolts Heavy Duty (Set) ARP 2000	£ 85.00
Inlet manifolds per pair	£250.00
Race Double Valve springs - to suit Cosworth type retainer (per set)	£ 432.78
Valve springs - Double to suit standard retainer (per set)	£ 160.00
Valve springs - Single to suit RS1600/RS1800 standard retainer (per set)	£ 69.19
Valve springs platforms B.D.A (each)	£ 7.00
Valve springs platforms B.D.G (each)	£ 7.00
Steel valve retainers (each)	£ 6.00
Valve guides (cast) (each)	£ 5.50
Valve guides (bronze) (each)	£ 15.00
Valve stem seal (each)	£ 2.00
Cam followers (each)	£ 16.50
Tappet shims - std (each)	£ 3.50
Tappet shims - top hat (each)	£ 4.50
Valve cotters (each)	£ 1.87
Inlet Valve 1.220", 1.275", 1.325", 1.360", 1.400" From	£ 17.50 ea
Exhaust valve 1.000", 1.075", 1.145", 1.200" From	£ 17.50 ea
Cam carrier- BDA	£ 680.00
Cam carrier- BDG	£ 680.00
Works type throttle linkage	£180.00
Ford BDA Engine Workshop Manual	£40.00

More parts available, prices subject to change. All parts are + VAT.

We accept most major credit cards.


2 litre and 2.2 litre Alloy block assemblies	FIA legal large valve BDG heads and assemblies

1600cc Formula Atlantic or 1700cc Iron block assemblies	1600cc Atlantic or 1700cc large valve race heads and assemblies

Short motors can be purchased fully assembled to suit various specifications i.e. 2000cc Alloy block, 1600cc or 1300cc Iron block. Telephone or email for details.	Cylinder heads can be purchased fully assembled or complete with cam carrier, camshafts, followers with tappets adjusted. Telephone or email for details.



Butterfly or roller barrel throttle bodies, distributor or Distributorless injection kits available for all BD type engines.


Complete engine kits available
2.0L Alloy block Engine kit	1.6L Steel block Engine kit

Cylinder Head 4 bolt exhaust	*Cylinder head 3 bolt exhaust*


*Cam belts* After purchasing the last 500 Ford BD belts, we have now had the belts re- manufactured by Gates and carry a large stock.

*Belt drive kits*


HTD complete drive assembly	Various back drive and polly V kits.	Re - manufactured BDA original water pump & crank V pulleys made in Alloy.
